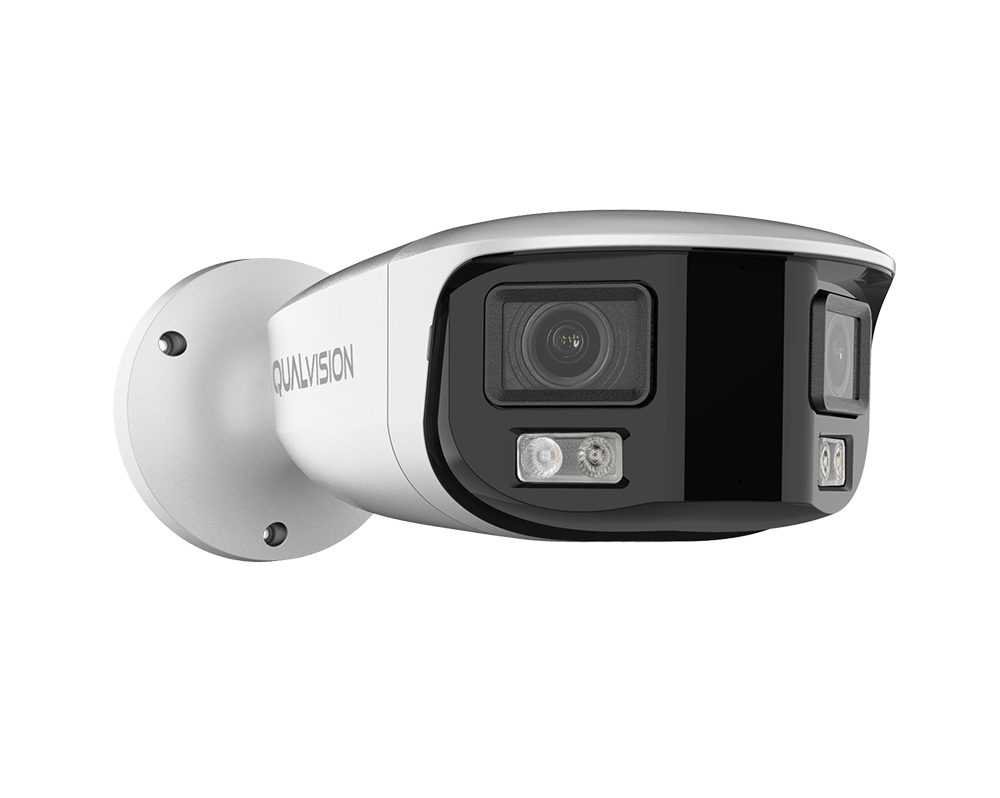

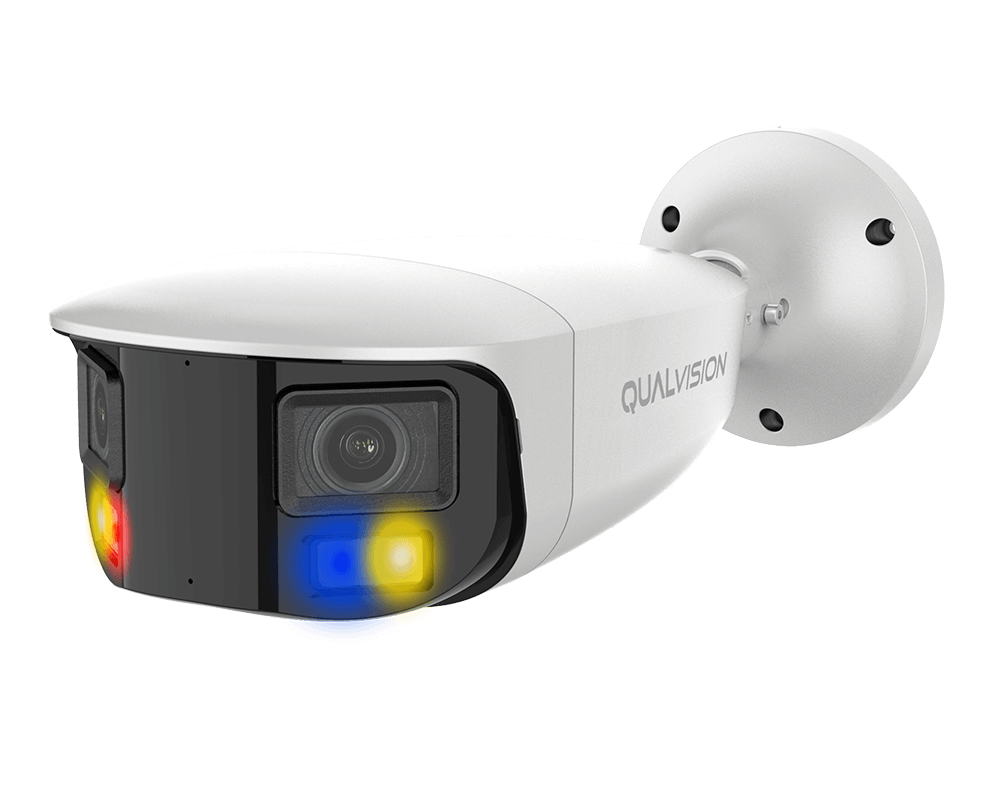

QV-IPC913823B61-TPMSCD

8MP Dual-Lens Network Camera

2 × 1/1.8" progressive scan CMOS sensor

High quality imaging with 8MP resolution

Efficient H.265+ compression technology

Built-in microphone and speaker for real-time audio security

Focus on human and vehicle targets classification based on deep learning

Water and dust resistant (IP67)

Camera

Image Sensor

2 × 1/1.8" Progressive Scan CMOS Sensor

Min. Illumination

0.0008 lux (Color) , 0 Lux with light

Illumination Distance

40 m (warm light)

Strobe Light

N/A

Smart IR

N/A

Pan/Tilt/Rotation Range

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Lens

Focal Length

4 mm

Aperture

F1.0

FOV

Horizontal FOV: 180°

Vertical FOV: 44°

Lens Mount

M16

DORI

DORI

4 mm, D: 70 m, O: 28.5 m, R: 14.3 m, I: 7 m

Compression Standard

Video Compression

H.264/H.264+/H.265/H.265+/MJPEG

H.264 Codec Profile

Base/Main/High profile

H.265 Codec Profile

Main Profile

Video Bit Rate

11 Kbps ~ 16Mbps

Triple Streams

Support

Audio Compression

G.711A, G.711U

Audio Bit Rate

64 Kbps


Max. Image Resolution

5120 x 1440

Main Stream

50 Hz: 20 fps (5120 × 1440)

60 Hz: 20 fps (5120 × 1440)

Sub Stream

50 Hz: 20 fps (1920 × 544)

60 Hz: 20 fps (1920 × 544)

Third Stream

50 Hz: 20 fps (352 × 288)

60 Hz: 20 fps (352 × 240)

Image Setting

Brightness/Contrast/Saturation/Hue/Sharpness

Shutter Time

Auto/Manual, 1/3~1/100000s

Day/Night

IR cut filter

Wide Dynamic Range

130 dB

Digital Noise Reduction

3D DNR

BLC

Support

HLC

Support

ROI

Support

Smart Feature

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle) ) , Video Shelter

Smart Event

Line crossing detection, Area intrusion, Region Entrance, Region Exiting (support alarm triggering by specified target types (human and vehicle) )

Face Detection

N/A

Network

Network Storage

NAS (NFS, SMB/CIFS)

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P

System Compatibility

Onvif ( Profile S, G,T ) , CGI, SDK

Security

Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1,1.2, WSSE and digest authentication for Open Network Video Interface

User

40

Web Browsers

Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+

Mobile Surveillance

Android, IOS

Active Deterrence

Red/Blue Light Warning

Support

Sound Warning

Support

Interface

Communication interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-board storage

Up to 256GB

MIC

Support

Speaker

Support

Audio I/O

1/1

Alarm I/O

1/1

Reset button

Support

General

Operating Conditions

-40°C ~ 60°C (-40°F ~ 140°F)
Humidity 95% or less (non-condensing)

Power Supply

DC12V ± 25%

POE

PoE (802.3 af)

Power Consumption

MAX.11 W

Protection Level

IP67

Material

Metal

Dimensions

120 × 105 × 327 mm (4.73'' × 4.13'' × 12.88'')

Gross Weight

1630 g (3.59 lb)
